Automatic Air hose Reel 20m DINGQI BRAND - BAS Kuwait

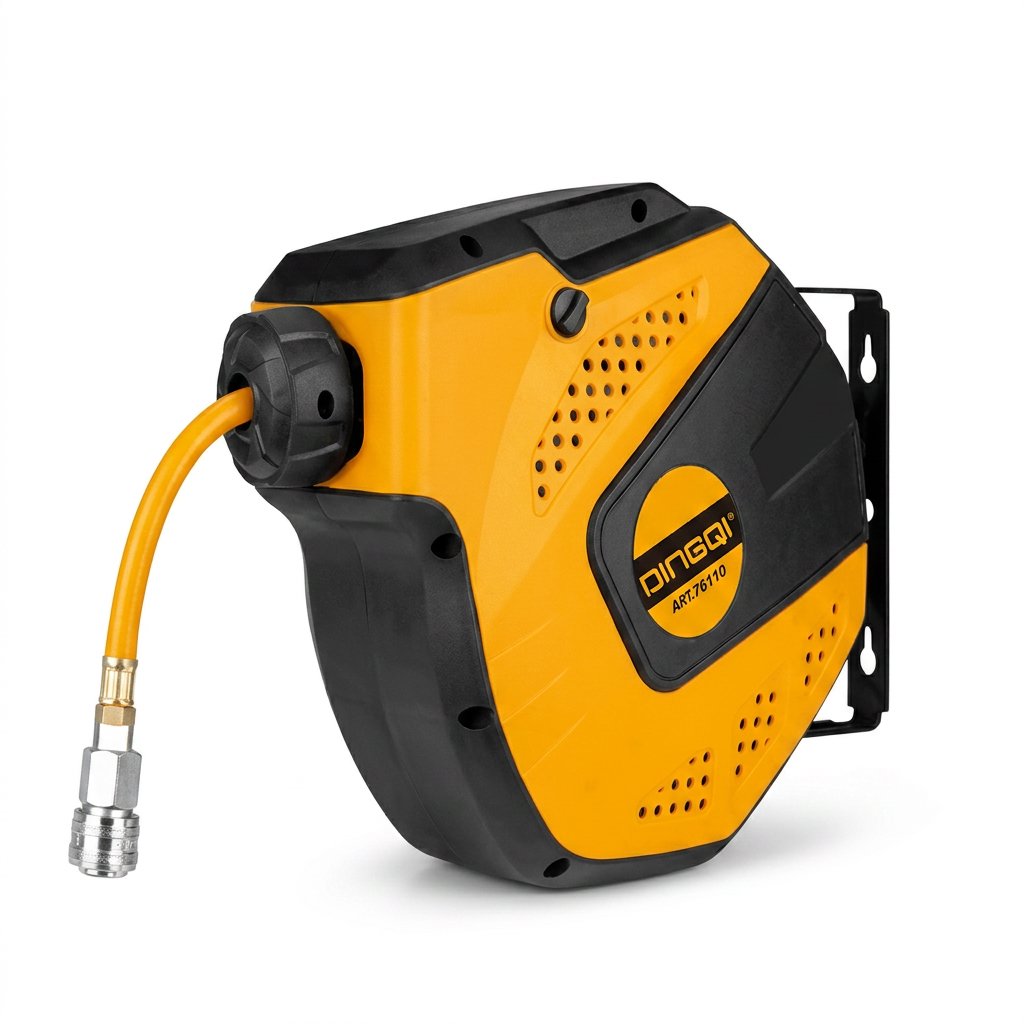

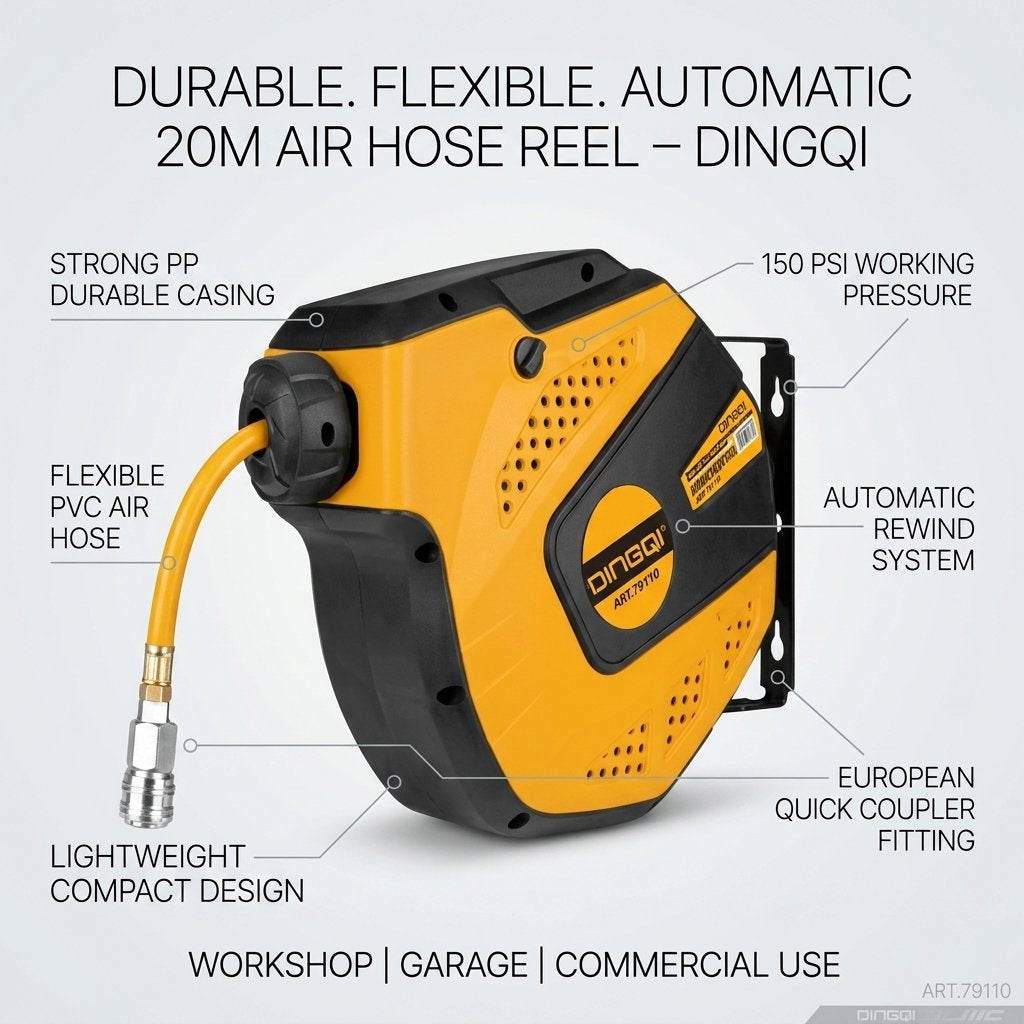

A retractable air hose reel holding 20+1 m of PVC hose in a polypropylene casing, rated for a working pressure of 150 psi, from 19.950 KD. 179 in stock across the two options. The hose is 5/16 inch, 8 x 12 mm, with a 1/4 inch BSPT fitting and European quick couplers.

What the product record gives

• Hose length: 20 + 1 m
• Hose size: 5/16 inch, 8 x 12 mm
• Hose material: PVC
• Casing: polypropylene (PP)
• Working pressure: 150 psi
• Fitting: 1/4 inch BSPT, European quick couplers
• Recorded for air and water, commercial and residential
• Two options, 19.950 KD and 25.000 KD, 80 and 99 in stock

The two options are the same reel

The 19.950 KD and 25.000 KD options differ only by the service term attached to them. The reel, the hose and the fittings are identical. Compare this page at 19.950 KD.

Check the pressure figure against your compressor

150 psi is roughly 10 bar and it is the hose and reel rating, not a compressor output. Most small workshop compressors sit below that, so the reel is not usually the limit, but check your compressor's maximum before you buy and never run a hose above its rating. The 1/4 inch BSPT fitting with European quick couplers is the common standard here, so it will usually mate with what you already have, though it is worth taking your existing coupler to the counter to be sure.

What the 20+1 m means

20 metres winds onto the drum and the extra metre is the short lead from the reel to the wall connection, so you do not lose working length to the feed. Plan from the 20 m figure when you are deciding where to mount it.

What is not recorded?

No reel diameter, no mounting bracket detail, no weight and no burst pressure are in the product record. Mounting detail in particular is worth checking if you intend to put it on a wall or a ceiling, so ask us to show you the bracket.

Can I use it for water?

The record states it is suitable for air and water applications. It does not say the hose is rated for drinking water, so do not use it for that.

Does it retract automatically?

The record describes it as automatic and says the body rewinds easily. Ask us to pull and release one at the counter so you can see how it behaves before you order.

Can I see it before buying?

Yes. It is at our showroom in Shuwaikh Plaza, Khalifa Al-Jassim Street, Shuwaikh Industrial. We deliver across Kuwait and take cash on delivery, card or Deema instalments.
